Peer-to-Peer Endpoints

ProxyStore Endpoints are in-memory object stores with peering capabilities. Endpoints enable data transfer with proxies between multiple sites using NAT traversal.

Warning

Endpoints are experimental and the interfaces and underlying implementations will likely change. Refer to the API docs for the most up-to-date information.

Warning

Endpoints do not have user authentication yet, so use at your own risk.

Overview

At its core, the Endpoint is an in-memory data store built on asyncio. Endpoints provide a REST API, served using Quart, and ProxyStore provides the EndpointStore as the primary interface for clients to interact with endpoints.

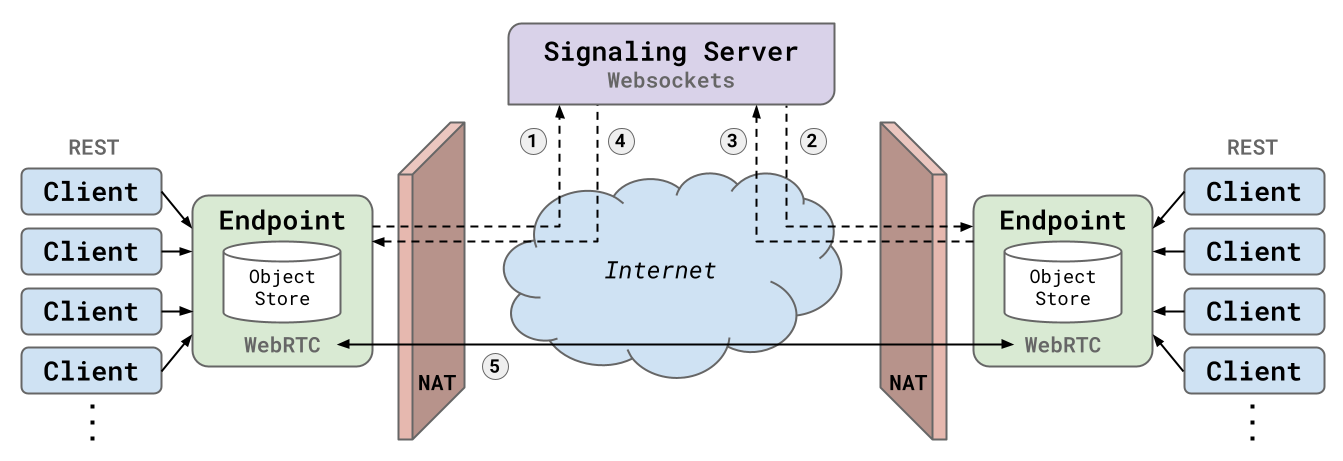

Figure 1: ProxyStore Endpoints overview. Clients can make requests to any endpoint and those request will be forwarded to the correct endpoint. Endpoints establish peer-to-peer connections using UDP hole-punching and a publicly accessible signaling server.

Unlike popular in-memory data stores (Redis, Memcached, etc.), ProxyStore endpoints can operate as peers even from behind different NATs without the need to open ports or SSH tunnels. To achieve direct data transfer between peers, endpoints use the WebRTC standard to determine how the peers can connect.

As shown in Fig. 1, endpoints use a commonly accessible signaling server to facilitate peer connections. When an endpoint is started, the Endpoint registers with the signaling server. Then, when an endpoint needs to make a request from a peer, (1) the endpoint creates an offer and asks the signaling server to forward the offer to the peer endpoint. The signaling server forwards the offer (2) and the peer endpoint creates an answer to the received offer. The peer endpoint returns the answer to the original endpoint via the signaling server (3, 4).

The offer and answer contain information about the local and remote sessions of the endpoints which can be used to complete the peer-to-peer connection (5). (Note: this is a great simplification and more details can be found at https://webrtc.org/getting-started/peer-connections.) The peers will then keep a data channel open between themselves for the remainder of their lifetime.

Clients interacting with an endpoint via the REST API and typical object store operations (get, set, etc.) specify a key and an endpoint UUID. Endpoints that receive a request with a different endpoint UUID will attempt a peer connection to the endpoint if one does not exist already and forward the request along and facilitate returning the response back to the client.

Endpoint CLI

Endpoints can be configure and started with the proxystore-endpoint command.

$ proxystore-endpoint configure my-endpoint --port 9732 --server remote-server.com:3574
Configured endpoint my-endpoint <12b8f3b6-6c0e-4141-b851-870895e3eb3c>.

To start the endpoint:
   $ proxystore-endpoint start my-endpoint

Endpoint configurations are stored to $PROXYSTORE_HOME/{endpoint-name} or $XDG_DATA_HOME/proxystore/{endpoint-name} (see home_dir()) and contain the name, UUID, host address, port, and singaling server address.

1. Name: readable name of the endpoint. Used for management in the CLI and to improve log readability.
2. UUID: primary identifier of the endpoint. The signaling server will use this UUID to keep track of endpoints.
3. Host address: host address of the Quart app for the endpoint. Defaults to the IP address of host the endpoint is configured on. Note: this address is only used by clients within the local network and can be set to localhost if the client and endpoints are on the same host.
4. Port: port the Quart app for the endpoint will listening on. Defaults to 9753.
5. Signaling server address: address of signaling server to use for peer connections. All endpoints that may peer with each other must use the same signaling server. Signaling servers are optional, and if unspecified, the endpoint will operate without peering functionalities.

Starting the endpoint will load the configuration from the ProxyStore home directory, initialize the endpoint, and start a Quart app using the host and port.

$ proxystore-endpoint start my-endpoint

EndpointStore

The primary interface to endpoints is the EndpointStore.

Note

This section assumes familiarity with proxies and the Store interface. See the Get Started guide before getting started with endpoints.

from proxystore.store.endpoint import EndpointStore

store = EndpointStore(
   name='default',
   endpoints=[
       '5349ffce-edeb-4a8b-94a6-ab16ade1c1a1',
       'd62910f6-0d29-452e-80b7-e0cd601949db',
       ...
   ],
)

p = store.proxy(my_object)

The EndpointStore takes a list of endpoint UUIDs. This list represents any endpoint that proxies created by this store may interact with to resolve themselves. The EndpointStore will use this list to find its home endpoint, the endpoint that will be used to issue operations to. To find the home endpoint, the ProxyStore home directory will be scanned for any endpoint configurations matching the one of the UUIDs. If a match is found, the EndpointStore will attempt to connect to the endpoint using the host and port in the configuration. This process is repeated until a reachable endpoint is found. While the user could specify the home endpoint directly, the home endpoint may change when a proxy travels to a different machine.

Proxy Lifecycle

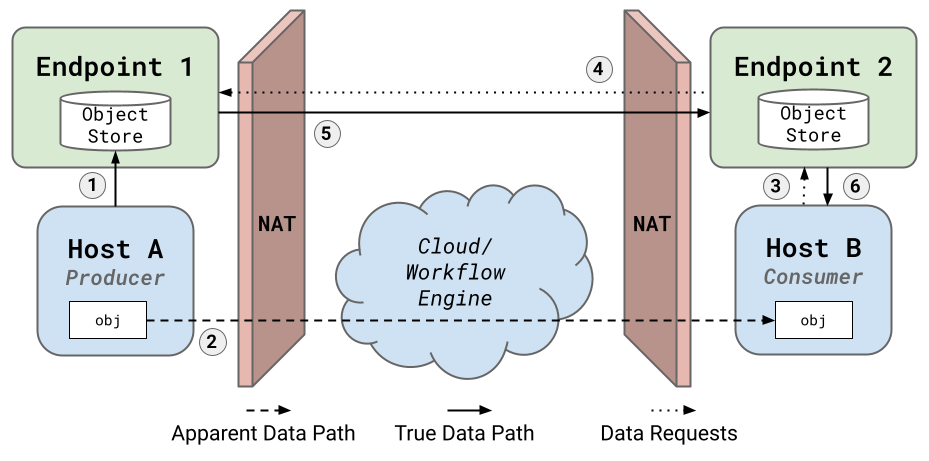

Figure 2: Flow of data when transferring objects via proxies and endpoints.

In distributed systems, proxies created from an EndpointStore can be used to facilitate simple and fast data communication. The flow of data and their associated proxies are shown in Fig. 2.

1. Host A creates a proxy of the target object. The serialized target is placed in Host A's home/local endpoint (Endpoint 1). The proxy contains the key referencing the target, the endpoint UUID with the target data (Endpoint 1's UUID), and the list of all endpoint UUIDs configured with the EndpointStore (the UUIDs of Endpoints 1 and 2).
2. Host A communicates the proxy object to Host B. This communication is cheap because the proxy is just a thin reference to the object.
3. Host B receives the proxy and attempts to use the proxy initiating the proxy resolve process. The proxy requests the data from Host B's home endpoint (Endpoint 2).
4. Endpoint 2 sees that the proxy is requesting data from a different endpoint (Endpoint 1) so Endpoint 2 initiates a peer connection to Endpoint 1 and requests the data.
5. Endpoint 1 sends the data to Endpoint 2.
6. Endpoint 2 replies to Host B's request for the data with the data received from Endpoint 2. Host B deserializes the target object and the proxy is resolved.

Hosting a Signaling Server

Currently, ProxyStore does not provided any publicly host signaling servers, though we hope to in the future! Hosting your own signaling server is simple if you have a host accessible from the internet (e.g., a compute instance from a cloud provider or a machine behind a NAT with an open port) and the ProxyStore package installed.

$ signaling-server --port 3579
